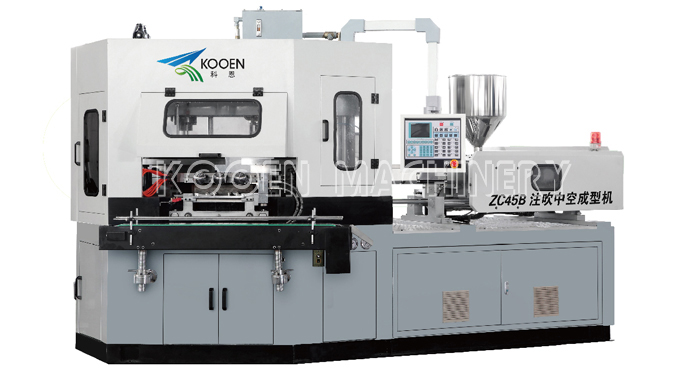

1.45B adopt Yuken variable pump.

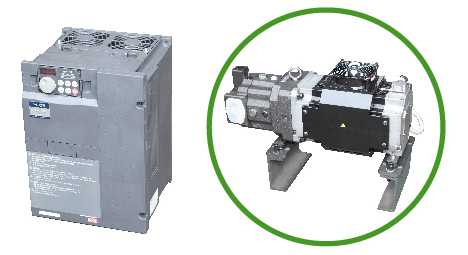

45C adopt Electro-Hydraulic Hybrid Servo System can save 40% power than usual.
2.Apply the double vertical pole and single horizontal beam to make enough
rotation space, longer bottles, make the mold installation easy and simple.
3.The injection mold adopt the double assisstant cylinder open-close mold,
ensure the stable and quick moving. The clamping force is three points equal
distribution. high-speed hydraulic-added valve can increase the clamping speed.
ELECTRO-HYDRAULIC HYBRID SERVO SYSTEM
Main Technical Parameter
|
Name |
Units |
45B |
45C |
|
Dia.of screw |
MM |
45 |
45 |
|
Screw L/D |
24 |
24 | |
|
Shot volume |
CM3 |
325 |
325 |
|
Injection weight |
G |
250 |
250 |
|
Injection pressure |
MPA |
167 |
167 |
|
Max.screw stroke |
MM |
210 |
210 |
|
Max.screw speed |
RPM |
10-235 |
10-235 |
|
Heationg capacity |
KW |
8.5 |
8.5 |
|
No.of heating zone |
QTY |
3 |
3 |
|
Clamping&blowing system |
|||
|
Clamping force of injection |
KN |
600 |
600 |
|
Clamping force of blowing |
KN |
150 |
150 |
|
Platen opening stroke |
MM |
120 |
120 |
|
Lifting height of rotary table |
MM |
60 |
60 |
|
Max.platen size(LxW) |
MM |
580x390 |
580x390 |
|
Min.mold thickness |
MM |
240 |
240 |
|
Heating capacity of mould |
KW |
2.5 |
2.5 |
|
Stripping system |
|||
|
Stripping stroke |
MM |
210 |
210 |
|
Driving system |
|||
|
Motor power |
KW |
22 |
20 |
|
Hydraulic pressure |
MPA |
14 |
14 |
|

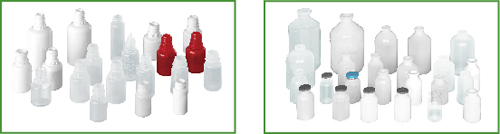

Product range |
|||
|
Suitable bottle range |
L |
0.015-0.8 |
0.015-0.8 |
|
Max.bottle height |
MM |
<=200 |
<=200 |
|
Max.dia.of bottle |
MM |
<=100 |
<=100 |
|
Other |
|||
|
Dry cycle |
S |
4.5 |
4.5 |
|
Min.Air pressure |
MPA |
1.2 |
1.2 |
|
Discharge rate of compressed air |
M3/MIN |
>0.8 |
>0.8 |
|
Water flowage |
M3/H |
3.5 |
3.5 |
|
Total rated power with mold heating |
KW |
32.1 |
30 |
|
Dimension(LxWxH) |
MM |
3800x1600x2230 |
3800x1600x2230 |
|
Net weight |
T |
7.5 |
7.5 |

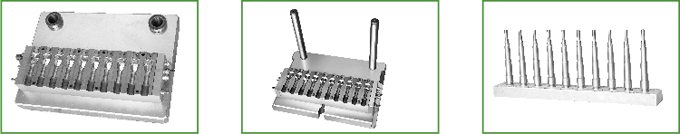

CAVITY NUMBER OF ONE MOULD CORREPONDING TO PRODUCT VOLUME. (FOR REFERENCE)
| PRODUCT VOLUME(ML) |
15 |
20 |
40 |
60 |
100 |
120 |
200 |
| CAVITY QUANTITY |
10 |
9 |
7 |
6 |
6 |
5 |
5 |
