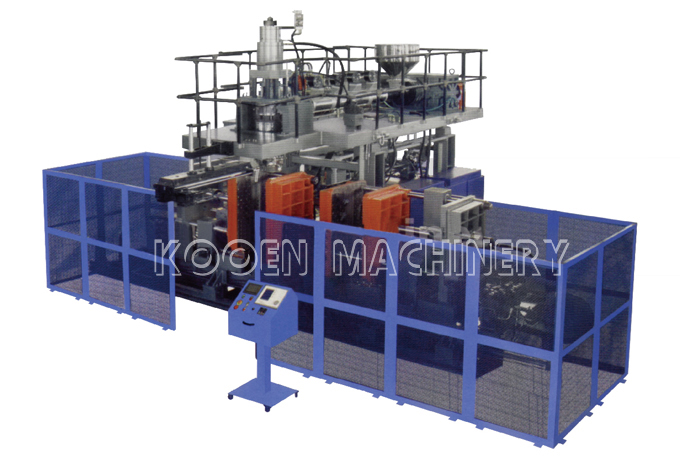

Clamping System: Integral movement mold open-closing system with double station
Extruding System: Compound screw, L/D radio=24/1, Inverter harden gear surface decelerator
Die System: Side way double bestrow and single cylinder material-center-incoming accumulator head
Hydraulic System: Proportional control,Japan YUKEN for hydraulic valve, imported pump from Europe
Eletrical Control System: Special closed-loop control system imported from Europe
Blowing Device: Multi-function automatic bottom-blowing system
Main Technical Parameter
|
Name |
Units |
100DB |
|
Material |
PE, PP, ABS... | |
|

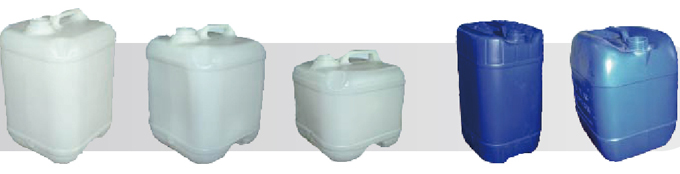

Max container capacity |
L |
30 |
|
Number of die |
SET |
1 |
|
Output (Dry cycle) |
PC/HR |
Depend on actual products and productive condition |
|
Mchine dimension(LxWxH) |
M |
6.4x6.2x4 |
|
Total weight |
T |
23 |
|
Clamping force |
KN |
200 |
|
Platen opening stroke |
MM |
400-850 |
|
Platen size(WxH) |
MM |
830x800 |
|
Max mould size(WxH) |
MM |
590x700 |
|
Mould thickness |
MM |
410-470 |
|
Max drive |
KW |
107 |
|
Air pressure |
MPA |
1.0 |
|
Air consumption |
M3/MIN |
1.2 |
|
Average energy consumption |
KW |
63 |
|
Screw diameter |
MM |
100 |
|
Screw L/D ratio |
L/D |
24 |
|
Plasticizing capacity |
KG/HR |
160 |
|
Number of heating zone |
ZONE |
5 |
|
Extrudedr heating power |
KW |
28 |
|
Extruder driving power |
KW |
55 |
|
Number of die |
ZONE |
1 |
|
Number of heating zone |
PCS |
4 |
|
Power of die heating |
KW |
19 |
|
Max die-pin diameter |
MM |
250 |
|
Accumulator capacity |
L |
5 |
